Alfa Laval CH-30 POF
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year: 2002
- Motor Shaft Speed: 1500 r/min
- Recommended Motor Power: 112 kW
- Process Temperature Range: 0-65℃
Introduction

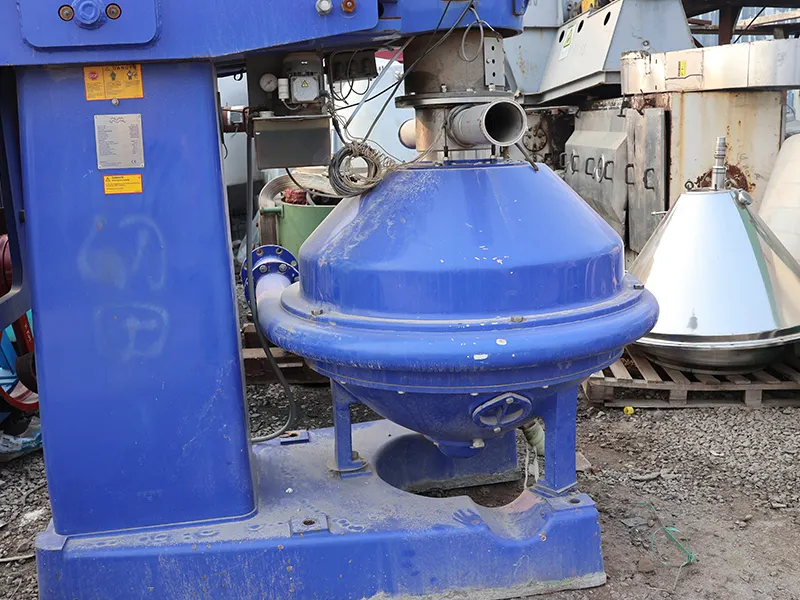

CH-30 POF is an Alfa Laval CH series disc centrifuge. It is an efficient separation device. Its core lies in achieving precise separation of liquid-solid, liquid-liquid or liquid-liquid-solid through the high-speed rotating disc stack structure.
Specification

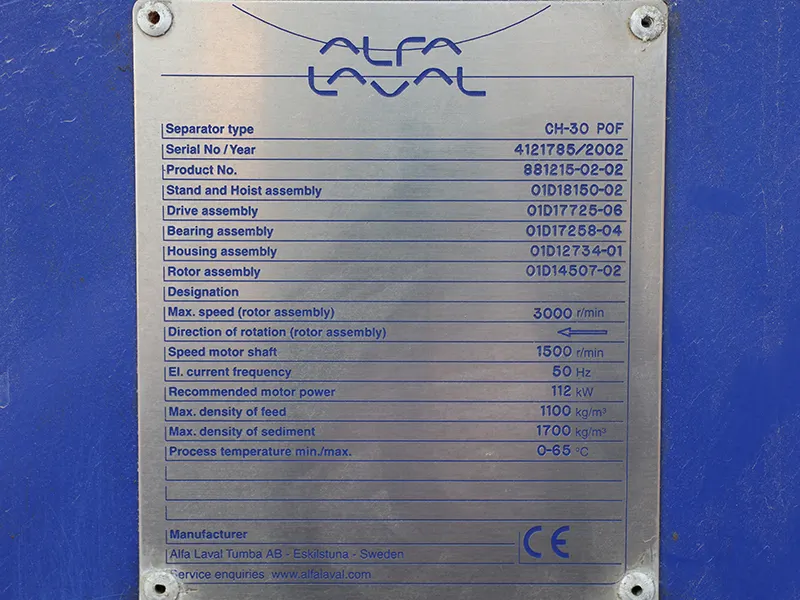

Category | Item |
Basic Information | Equipment Type |
Serial No./Year | 412785/2002 |
Product No. | 881215-02-02 |
Manufacturer | Alfa Laval Tumba AB – Eskilstuna – Sweden |
Service Consultation | www.alfalaval.com |
Part No. | Stand and Hoist Assembly |
Drive Assembly | 01D17725-06 |
Bearing Assembly | 01D17258-04 |
Housing Assembly | 01D12734-01 |
Rotor Assembly | 01D14507-02 |
Operating Parameters | Max. Speed (Rotor Assembly) |
Rotation Direction (Rotor Assembly) | Left (←) |
Motor Shaft Speed | 1500 r/min |
Current Frequency | 50 Hz |
Recommended Motor Power | 112 kW |
Process Parameters | Max. Density of Feed |
Max. Density of Sediment | 1700 kg/m³ |
Process Temperature Range | 0-65℃ |
Feature
Modular design, with high standardization of components, facilitating maintenance and replacement;
Compatible with online cleaning (CIP), capable of continuous automated operation, reducing labor costs;
Using corrosion-resistant materials (such as stainless steel), suitable for various process media;
High separation efficiency, capable of effectively handling low-solid-content fluids and reducing material loss.
Application fields
CH-30 POF is a specialized starch centrifuge, which is widely used in the wet grinding process of corn
Primary starch separation: Separation of starch from proteins (gluten).
Gluten concentration: Dehydration and concentration of gluten after separation.
Mill flow concentration: Concentration of the slurry at different stages of the flour milling process.
Petrochemical industry: Separation of impurities in lubricating oil / fuel oil, catalyst recovery;
Mineral processing: Solid-liquid separation of ore slurries, purification of beneficiation solutions;
Pulp and paper manufacturing: Solid-liquid separation of pulp waste liquids, chemical recovery;
Green chemistry: Medium purification in the production of bio-based materials;
Pharmaceuticals / Food: Clarification of some high-purity materials, impurity filtration (suitable for food-grade materials)
