Alfa Laval GTPX 517TGV-15 GC type three-phase disc separator

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

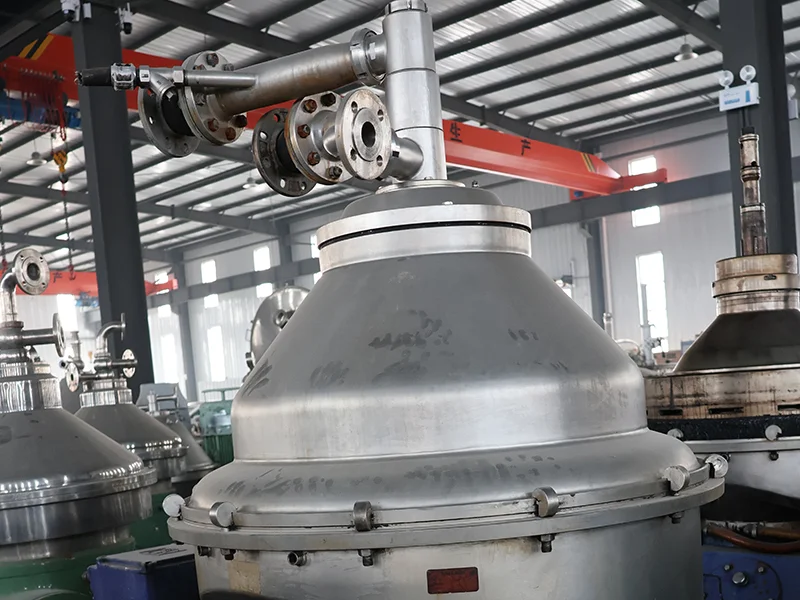

The Alfa Laval GTPX 517 TGV-15CG is a high-performance self-cleaning disc-type centrifugal separator, specifically designed for three-phase (liquid-liquid-solid) separation in industrial applications. This model is widely used in heavy fuel oil (HFO) processing, oily wastewater treatment, and other scenarios where efficient separation of liquids and solid particles is required.

Specification

Parameter Item	Details
Separator Model	GTPX 517GV-15CG
Serial No. / Year	/2004/SK-04-0007
Product No.	881184-09 S.01
Upper Equipment Part No.	547026-01
Import/Export Part No.	546038-01
Bowl Part No.	545988-S.05
Lower Equipment Part No.	555434-03
Maximum Bowl Speed	4136 r/min
Bowl Rotation Direction	(Direction indicated by arrow)
Motor Shaft Speed	1500 r/min
Current Frequency	50 Hz
Recommended Motor Power	37 kW
Recommended Feed Density	1100 kg/m³
Maximum Sludge Density	2071 kg/m³
Maximum Operating Liquid Density	1000 kg/m³
Process Temperature Range	0/100 °C
Manufacturer	Alfa Laval Tumba AB (Sweden)

Product Features

Efficient Separation: Utilizing disc stack technology, it provides a large separation area, enabling efficient tri-phase separation of oil, water, and solid particles.
Air-tight Design: The “GTPX” series is air-tight, allowing for the safe handling of volatile or flammable liquids, reducing the risk of gas escape and pollution.
Self-cleaning Function: The intermittent bottom discharge design enables automatic removal of solid impurities as needed, without the need for shutdown, thereby increasing production efficiency and reducing downtime.
Durability: The contact liquid components are made of 316 stainless steel, ensuring long-term reliability and durability of the equipment in corrosive environments.
Precise Control: The discharge process can be precisely controlled by a timer and supports variable discharge volume to meet different process requirements.
Versatility: Suitable for various industrial applications, including marine fuel purification, power plant fuel treatment, industrial wastewater treatment, etc.

Application fields

The Alfa Laval GTPX 517 TGV-15CG separator, due to its high efficiency and reliability, is widely used in the following fields:

Shipbuilding industry: Purification of heavy fuel oil and lubricating oil.
Power industry: Pre-treatment of fuel oil in power plants.
Petrochemical industry: Purification and recovery of various oil products and chemicals.
Environmental protection field: Oil-water separation treatment of industrial wastewater.
