Used GEA Westfalia RSA 60-01-076
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- built: 2001
- Rpm.of bowl: 6330 RPM
- Peavy liquid: 1.0 kg/dm³
- solids: 1.25 kg/dm³
Introduction
A self-cleaning disc separator mainly used for the production of vegetable Oil (refining, degumming, neutralization, washing) or Butter Oil.
Specification

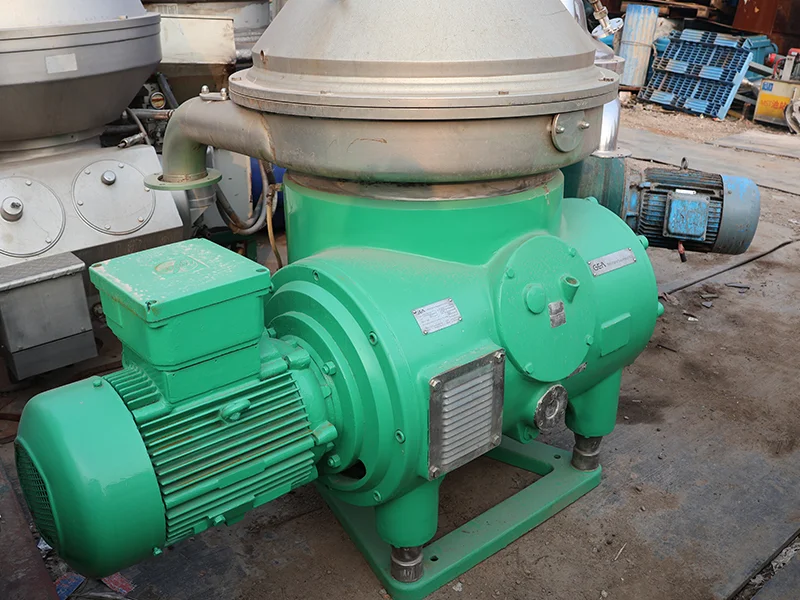

It is a three-phase self-cleaning disc separator manufactured by GEA, specifically designed for the production of vegetable oil (including refining, degumming, neutralization, and washing processes) or butter oil.

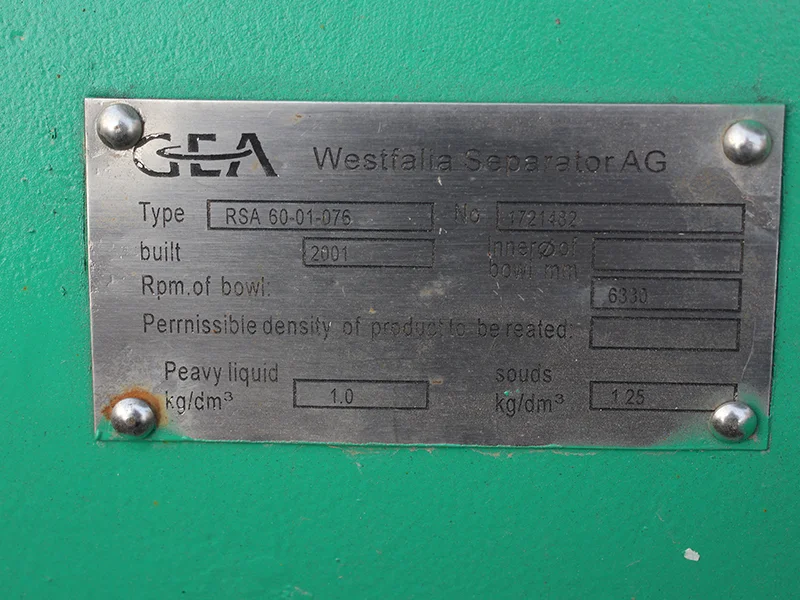

Item | Details |
Manufacturer | GEA Westfalia Separator AG |
Type | RSA 60-01-076 |
Serial Number | 1721482 |
Year Built | 2001 |
Inner Ø of Bowl (mm) | (Not filled) |
Rpm of Bowl | 6330 |
Permissible Density of Product to Be Treated – Heavy liquid (kg/dm³) | 1.0 |
Permissible Density of Product to Be Treated – Solids (kg/dm³) | 1.25 |
Max Rotation Speed (RPM) | 6330~6460 RPM |
Rated Processing Capacity | ~13,000 LPH |
Motor Power | 15 kW (≈20 H.P), compatible with 380/400V, 3-phase, 50Hz power supply |
Motor Speed | 1450~1460 RPM (drives the bowl via belt) |
Bowl Material | 316 stainless steel |
Hydraulic Pressure Discharge | Dual-phase pressure discharge (max 6 bar) |
Material Density Limit | Liquid: 1.0 kg/dm³; Solids: 1.25 kg/dm³ |
Discharge Method | Automatic intermittent discharge (sliding piston type) |
Manufacturing Year | 1991~2001 |
Overall Dimensions (Reference) | Length≈173cm, Width≈85cm, Height≈195cm |
Equipment Weight (Reference) | ≈1550 kg |
