Used Alfa Laval DFNX 4565 Decanter Centrifuge

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

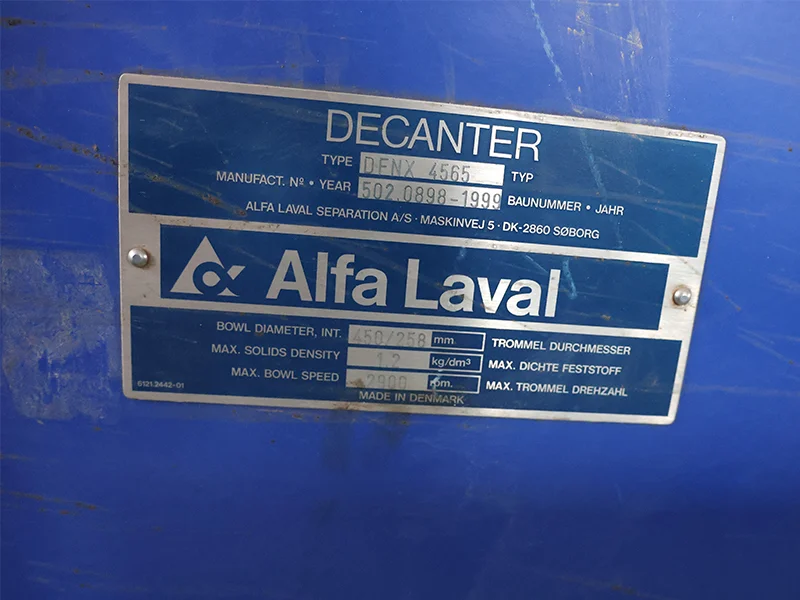

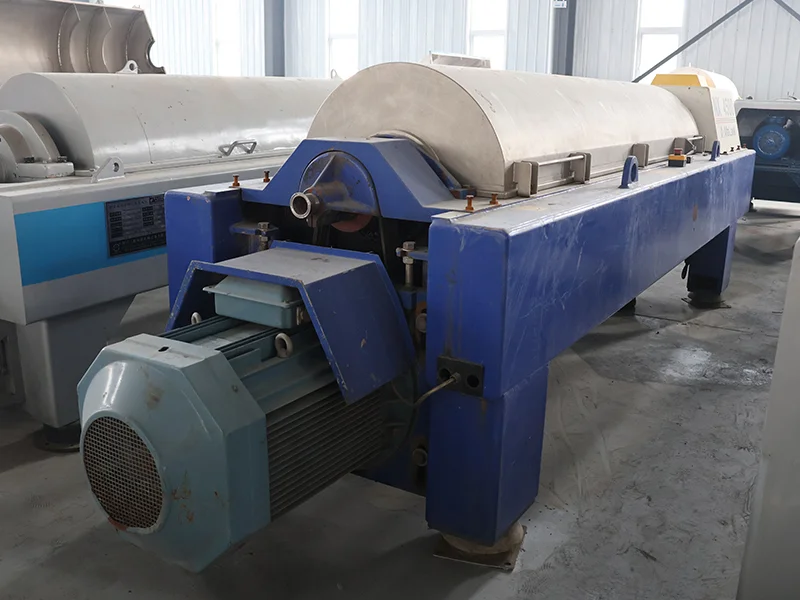

This is the Alfa Laval DFNX 4565 horizontal screw centrifuge, which is a solid-liquid separation equipment and is produced by Alfa Laval Separation A/S from Denmark.

Specification

Bowl Assembly
Diameter直径	450 mm / 17.7″
Length长度	2360mm92.9″
Contour Angle轮廓角	20Steep Cone
Material材质	316 Stainless Steel

PERFORMANCE
Max Speed	2900 RPM
lax G-Force	2115 X G
Rated Flow	120 GPI / 27.2 m2/h
Discharge	360Cake Ports

DRIVE SYSTEM

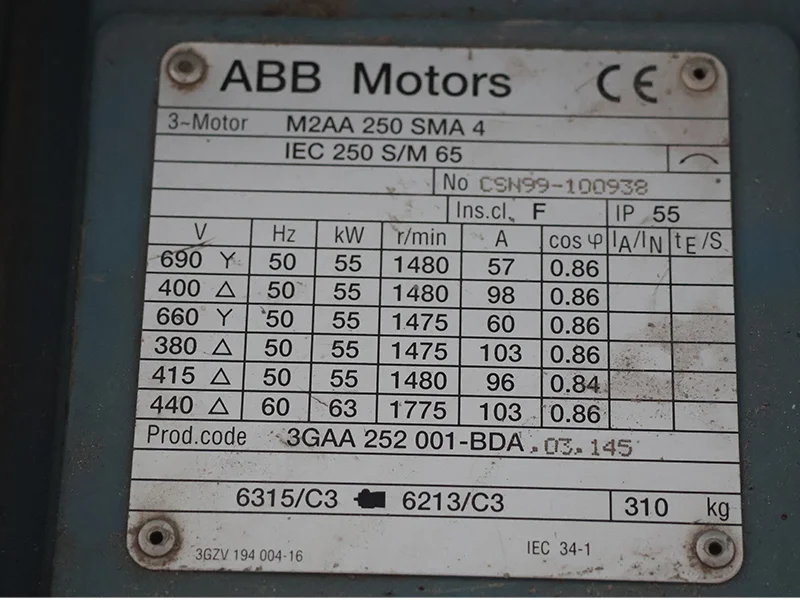

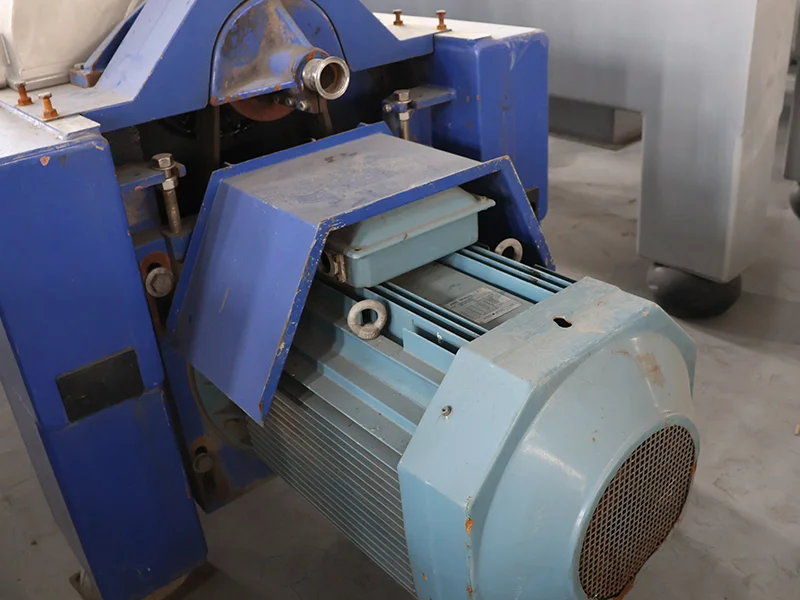

Main Motor	75 HP/ 56k
earbox Ratio	169:1
Gearbox Torque	6.0 kNm
Voltage	460V / 3Ph /60Hz

working principle

Its working principle is that through the high-speed rotation of the drum, centrifugal force (up to several thousand times that of gravity) is generated, which throws the solid-phase particles (with higher density) in the suspension onto the inner wall of the drum. Then, the spiral conveyor with a rotational speed difference from the drum pushes them to the conical section for drying and subsequently discharges; the liquid phase is discharged from the weir outlet in a continuous manner, achieving continuous solid-liquid separation.

Key Specifications

pplication Positioning: Compatible with feed-grade materials (such as protein and oil recovery), optional CIP cleaning system to meet hygiene requirements.
Parameter Adjustable: The rotational speed and differential speed of the drum can be adjusted via frequency control to adapt to different material conditions.
Material and Maintenance: The tungsten carbide wear-resistant parts can be replaced, and stainless steel is in contact with the materials, making maintenance convenient.

The application scenarios include industries such as food and beverage (e.g. protein / oil extraction), wastewater treatment, biofuels, and mining drilling, etc. It features efficient separation, low energy consumption, and wear resistance (key components are made of stainless steel / wear-resistant materials), and can adapt to fluctuations in different feed loads. At the same time, it supports automatic control to ensure operational stability.
